Specifications:
| Stroke guiding carriage | mm | 22000 |
| Height total | mm | 27190 |
| Prestressing force | kN | 165 |
| Extraction force | kN | 250 |
| Torque absorption max. | kNm | 200 |
| Load capacity | kg | 15000 |
| Lifting capacity service winch | kN | 50 |
| Leader inclination front/rear max. | deg | 4/5 |
| Leader inclination laterally max. | deg | 4 |
| Leader slewing range max. | deg | 95 |
Base carrier: SR 45D
| Engine power CAT C18 | kW | 563 |
| Optional with base carrier SR 35T HD. |
Transport weight:
| Telescopic leader mast with standard winch and with vibrator MRZV 30VV, without leader mast foot | kg | 81100 |

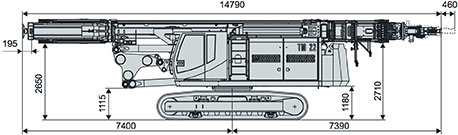

Transport dimensions:
| Length | mm | 14790 |
| Width | mm | 3000 |
| Height | mm | 3600 |
|
