DELMAG Lead Systems 2

Model		MAR 30-30	MAR 62-48	MAR 100-60	MAR 200-72	MAR 300-84
Suitable for diesel hammer		D30-32	D62-22	D100-13	D200-42	D300-42
Pile diameter max.	mm	762	1220	1525	1830	2135
Length useable max.	m	14	24	30	36	40
Total weight without hammer	kg	7000	8500	11000	48000	48000

Model		MAS 3000	MAS 4600	MAS 6200
Suitable for diesel hammer		D30-32	D46-32	D62-22
Pile diameter max.	mm	820	1067	1420
Total weight without hammer	kg	4400	4600	6000

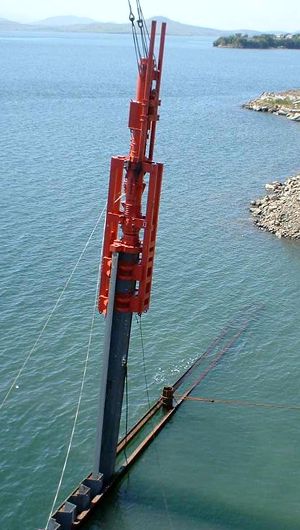

DELMAG MAR-type rope-suspended leads are mainly used to drive pre-0set pipes in marine and offshore projects. The lead, together with the hammer, is positioned onto of the pile by a crane. During operation the complete weight of hammer and lead is supported by the pile. For piling under inclination a hydraulic starting system for the hammer is required. In combination with a Delmag hydraulic power pack additional safety features such as 'automatic hammer stop' are available.

DELMAG MAS-type rope-suspended leads are designed to drive various sections of vertical piles such as sheet piles (U- and Z-sections) and other single piles (H-beams and pipe piles).

We reserve the right to change technical specifications without prior notice.
