ABI Telescopic Leaders

ABI Telescopic leader systems
Model		TM 11/14 SL	TM 13/16 SL	TM 14/17 V	TM 17	TM 20	TM 22
Usable length	mm	14000	16000	17000	18000	20000	22000
Prestressing force	kN	90	90	120	118	120	165
Pulling force	kN	175	175	200	200	200	250
Drilling torque max.	kNm	45	45	100	150	150	200
Front inclination	deg.	4	4	4	4	4	4
Rear inclination	deg.	5	5	5	5	5	5
Lateral inclination	deg.	4	4	4	4	4	4
Carrier		SR 25	SR 30	SR 35	SR 35	SR 35	SR 35 HD
Engine power	kW	257	294	470	470	470	470
Transport dimensions
Width	mm	3000	3000	3000	3000	3000	3000
Length	mm	9860	11770	12800	12770	13670	14790
Height	mm	3200	3400	3400	3400	3400	3600

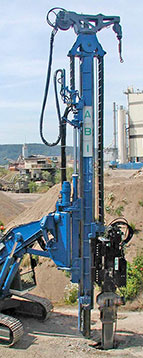

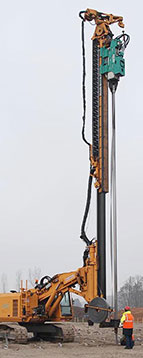

ABI Mobilram telescopic leader systems in combination with the wide range of different attachments are the ultimate piling and drilling equipment when maximum performance, driving accuracy, flexibility and manoeuvrability are required. Some main applications are:

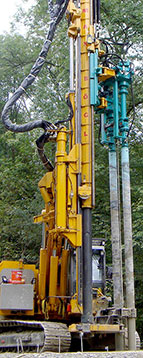

Vibrator for driving and extracting sheet piles, H-piles and pipe piles but also for installation of wick drains and gravel piles and other soil improvement works.

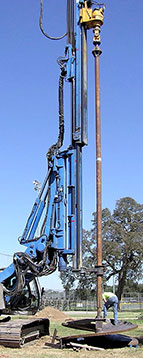

Various auger drives for pre-drilling, deep wells, installation of CFA piles and soil mixing applications.

We reserve the right to change technical specifications without prior notice.
