Specifications:
| Stroke guiding carriage | mm | 18000 |
| Height total | mm | 22825 |
| Prestressing force | kN | 118 |
| Extraction force | kN | 200 |
| Torque absorption max. | kNm | 150 |
| Load capacity | kg | 11000 |
| Lifting capacity service winch | kN | 50 |
| Leader inclination front/rear max. | deg | 4/5 |
| Leader inclination laterally max. | deg | 4 |
| Leader slewing range max. | deg | 93 |
Base carrier: SR 35T
| Engine power CAT C18 | kW | 470 |
Transport weight:
| Telescopic leader mast with standard winch, undercarriage T27, without attachment and without leader mast foot | kg | 62100 |

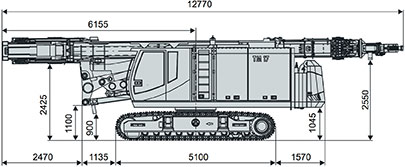

Transport dimensions:
| Length | mm | 12770 |
| Width | mm | 3000 |
| Height | mm | 3300 |
|
