Strand Anchors
The anchors are structural elements which are capable of transmitting stress to the ground by means of steel strand wires and various anchoring devices.
These consist in a particular application of prestress in the field of civil engineering and their most common applications can be found in the anchoring of sheet piles, secant piles, diaphragm walls as well as other panels and floors subject to hydrostatic pressure.

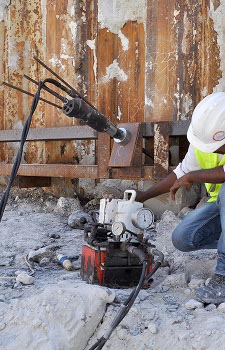

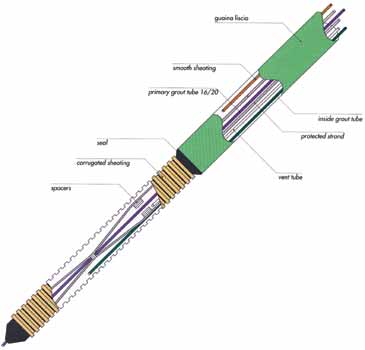

The anchor is essentially made up of three parts:
Anchor head, free part and bonded or foundation part.
Choice of anchor depending on maximum load:
| Anchors | Maximum load |
|---|
Strands
dia 0.6 | Nominal
Section | Linear
weight | Starting 85% proof load
136 kg/mm2 | Operation 60% Tensile strength
108 kg/mm2 |
|---|
| mm2 | kg/m | ton | kN | ton | kN |
|---|
| 1 | 139 | 1.11 | 19 | 185.9 | 15 | 147.1 |
| 2 | 278 | 2.22 | 38 | 371.9 | 30 | 294.3 |
| 3 | 417 | 3.33 | 57 | 557.8 | 45 | 441.4 |
| 4 | 556 | 4.44 | 76 | 743.8 | 60 | 588.6 |
| 5 | 695 | 5.55 | 95 | 929.7 | 75 | 735.7 |
| 6 | 834 | 6.66 | 114 | 1115.7 | 90 | 882.9 |
| 7 | 973 | 7.77 | 132 | 1301.6 | 105 | 1030.0 |
| 8 | 1112 | 8.88 | 152 | 1487.6 | 120 | 1177.2 |
| 9 | 1251 | 9.99 | 170 | 1673.5 | 135 | 1324.3 |
| 10 | 1390 | 11.10 | 190 | 1859.5 | 150 | 1471.5 |
| 11 | 1529 | 12.21 | 208 | 2045.4 | 165 | 1618.6 |
| 12 | 1668 | 13.32 | 227 | 2231.4 | 180 | 1765.8 |
