Metax Grouting Units (mixer & pump)

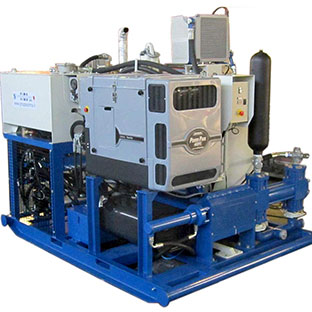

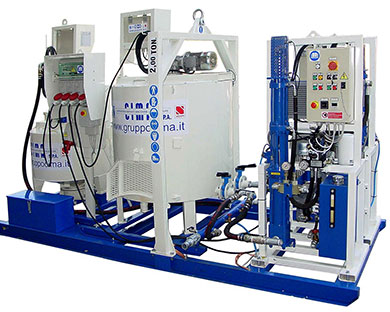

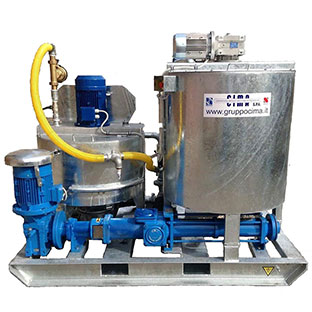

Metax grouting units consist of a high speed turbo mixer, an agitator and an injection pump to produce a cement grout using bag cement, water and/or bentonite power. Different units with electric or diesel motors and wide range of flow and pressure configurations are available. The grouting units are assembled on a firm base frame and a single lifting hook for easy manipulation.

Model		JMP12	JMP8	JMP5D	JMP5D-60	JMP5E	JMP3-2i
Electric power max.	kW	30	40-61			25	20
Engine power max.	kW			23.5	45
Mixed load capacity	l	350	350	350	350	350	350
Storage tank capacity	m3	2	2	0.5	0.5	0.5	1
Pump type		P4	IM90	IM75	IM75	IM75	IC90
Pump pressure max.	bar	700	80	100	140	140	120
Pump flow rate max.	l/min	430	212	160	200	200	38
Weight	kg	12500	4500	2200	2300	1800	2000

Applications:

Grouting of soil anchors
Soil nails
Micropiles
HDD applications
Annulus space grouting
Cave and mine backfilling

Product line:

High-pressure triplex pumps
Batching plants
Injection plants
Centrifugal and screw pumps
Horizontal Silos
Data loggers

We reserve the right to change technical specifications without prior notice.
