Metax Grout Mixing Plants

Model		JM18	JM24PV	JM30	JM40PV
Mixing capacity max. (ratio 1/1)	m3/h	18	24	30	40
Total electric power (50 Hz)	kW	22.5-28.5	28-65	33-35	57-78
Weighing system capacity max.	kg	3000	4000	3000	4000
Mixer
Tank capacity	l	550	2000	1450	2000
Pump delivery	l/min	700	2400	1800	3600
Pump motor power (50 Hz)	kW	7.5	15	15	22
Agitator
Tank capacity	l	3000	2500	3300	4200
Centrifugal pump delivery	l/min	450	1050	1300	2100
Pump motor power	kW	5.5	5.5	4	2.2
Water tank capacity	l	900	1150	1300	1600
Dimensions (L/W/H)	mm	2200/4400/2280	2450/6060/2590	2450/6060/2590	2450/6060/2590
Shipping weight ~	kg	3000	6500	6000	7000

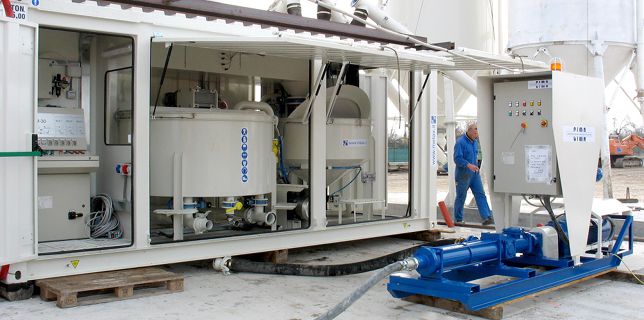

METAX grout mixing plants come with an electronic load cell weighing system for cement, water and other components. The electronic control panel allows the selection of up to 10 components and 20 mixing formulas for optimum grout quality at any possible grouting or jet grouting project.

Available options:
Air compressors of different capacities
Augers for loading cement from silos
Horizontal and vertical cement silos

We reserve the right to change technical specifications without prior notice.
