Technical specifications:
| Pump Unit | | |
|---|
| Output max. | m3/h | 10 |
| Pressure max. | bar | 25 |
| Gravel size max. | mm | 16 |
| Delivery distance max. | m | 45 |
| Delivery head max. | m | 15 |
| Hopper capacity | l | 180 |

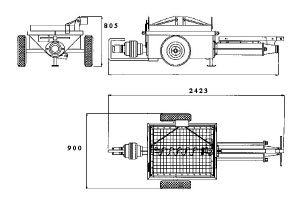

| Length | mm | 2423 |
| Width | mm | 900 |
| Height | mm | 805 |
| Weight | kg | 420 |
| Power Pack | | |
|---|
| Electric version | kW | 18.5 |
| Diesel version | kW | 18.5 |
| Hydraulic output | l/min | 60 |
| Hydraulic pressure | bar | 140 |
| Length | mm | 1700 |
| Width | mm | 700 |
| Height | mm | 1020 |
| Power pack weight | kg | 385 |
|
Main advantages:
- Exact constant quality
- Much less air consumption
- Minimum rebound
- Low wear of machine parts
- No dangerous dust
- Ideal solution for smaller room
Main applications:
- Open cut lining instead of sheet piling
- Slope stabilisation
- Spraying of pools
- Tunnelling
- Concrete repair
- Micropiling
- Injection of cement slurry
Useable for following materials:
- For concrete, light concrete
- Transport and spraying of normal mortar, thixotropical mortar including fibres, cement slurry and sludge
- Mortar with high viscosity for coating of floor and sporting areas with synthetic material
- Water proof mortar
- Anhydrith and cement based self levelling materials and compounds
|
