Drill Rigs with separate Power Pack
COMACCHIO MC-D Line
| Model | Engine power | Mast feed stroke | Feed force | Retract force | Rotary torque | Rotary speed range | Clamp range | Weight |
|---|
| kW | mm | daN | daN | daNm | rpm | mm | kg |
|---|
| MC 2D | 33 | 1250-2050 | 1200 | 1200 | 200-480 | 80-580 | 45-185 | 350+900 |

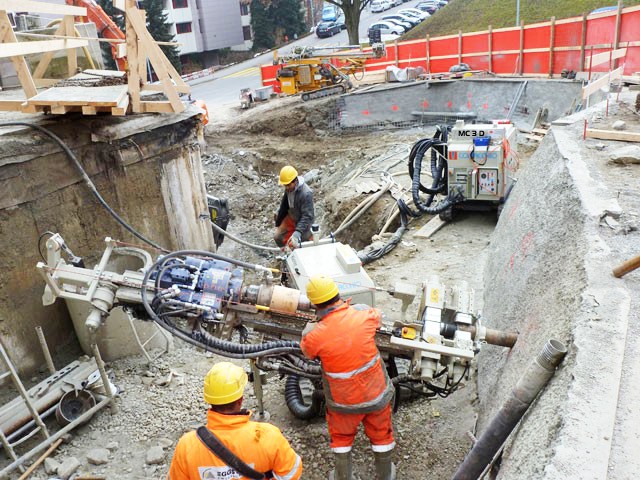

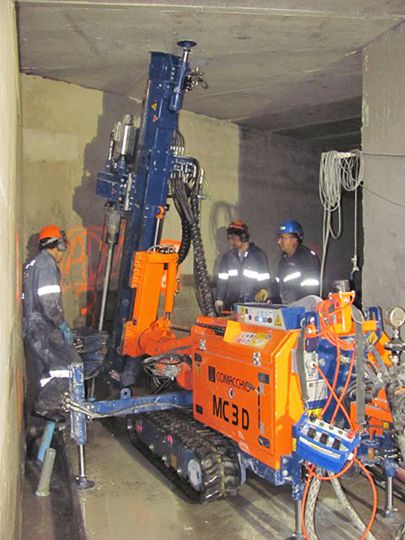

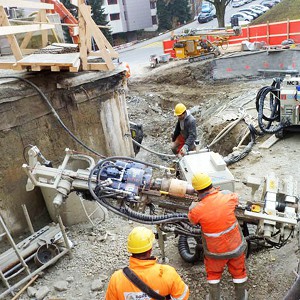

| MC 3D | 33-55,4 | 1200-2200 | 2500 | 2500 | 200-525 | 80-580 | 45-220 | 2200-2600 +1000-2000 |
| MC 4D | 55-100 | 943-2100 | 3500 | 3500 | 450-1500 | 65-380 | 45-3325 | 4200-5100 +1700-2800 |

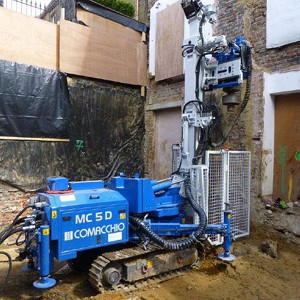

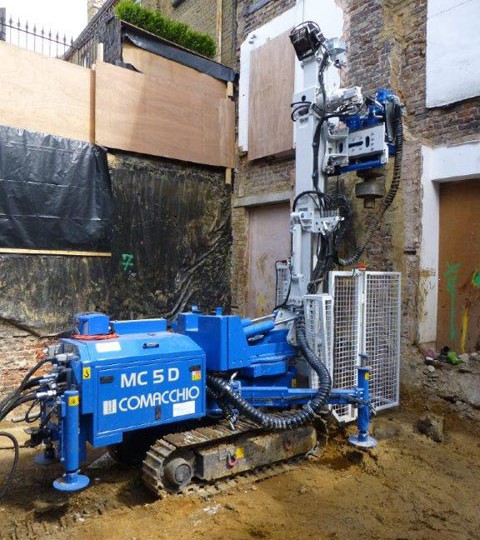

| MC 5D | 86-100 | 950-2550 | 3600-5500 | 5000-5500 | 450-2250 | 80-380 | 45-360 | 5000-6500 +2100-2800 |
| MC 8D | 97 | 950-4000 | 5500 | 5500 | 450-2400 | 57-380 | 45-360 | 8800-9100 |
The MC line includes both drilling rigs with hydraulic power pack on board or with separate power pack all to perform a great range of mast positions and inclinations, thus permitting operation in small spaces covering a large variety of works and maintaining a high performance.
A complete line of hydraulic crawler mounted drilling rigs especially designed for ground engineering works such as micropiles, anchors, jet grouting and ground improvement in general.
