ABI Add-On Auger Drives for Excavators

Model		BA 1200	BA 2200	BA 3200	DB 4500	RDV 400-660	RDV 500-820
Torque	daNm	1200	2200	3200	4500	4500	4500
Revolutions	rpm	73	50	50	50
Static extraction force max.	kN	120	200	200	200	180	180
Hydraulic flow rate	l/min	220	220	300	420
Req. oil quantity per rotation	l	3.0	4.4	6.3	8.8
Hydraulic power max.	kW	90	160	160	230
Nominal oil pressure	MPa	30	32	32	35
Total / transport weight	kg	430	600/700	1050/1360	1270/1590	720	720
Hexagon connection	mm	80	80	80	100	80/100	80/100
Transport height	mm	1270	1565	2600/2840	2600/2840	945	945
Transport width / depth	mm	800/710	900/710	1250/850	1410/850	915/790	1065/940

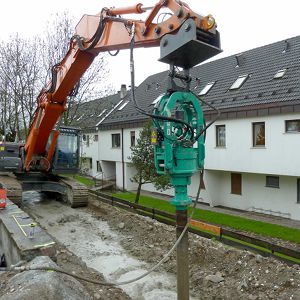

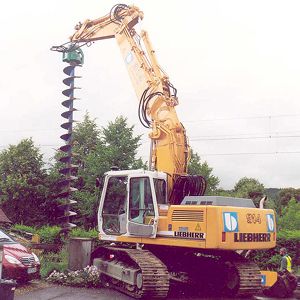

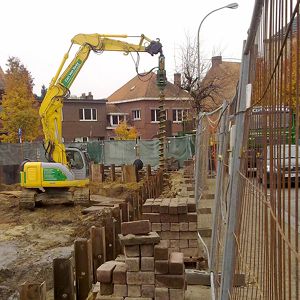

ABI hydraulic add-on auger drives are mounted to the stick of an excavator of sufficient weight and power and connected to the hydraulic system of the base machine for a wide range of drilling applications such as soil release drilling, well points, deep wells, small CFA piles, soil mixing and much more.

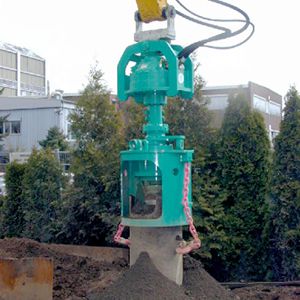

In combination with the ABI casing twister full cased CFA piles can be made at very reasonable cost. The DBA series of auger drives can be delivered with a concreting swivel for pumping concrete or grout through hollow stem CFA tools and produce CFA piles in unstable ground or for soil mixing applications.

We reserve the right to change technical specifications without prior notice.
