Jetgrouting Pumps

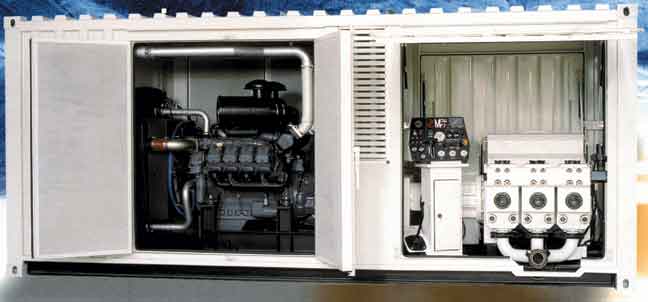

Our high pressure jet grouting pumps are available either skid-base mounted with sound-proof engine chassis or fully protected in a 20 foot container (2400x2400x6000 mm). High quality components, excellent workmanship and international experience make our pumps the ideal choice for all kinds of ground consolitation works where continuous and high-pressure grout is required. The ISO 9000 quality certificate offers additional confidence in our jetgrouting pumps.
Together with our line of grout mixing plants (manual or computerised) we offer complete systems for every grouting and jetgrouting application.

Model		MP3	MP4	MP5	MP7	MP7ST	MP9ST
Pressure max.	bar	80	700	800	900	900	570
Flow rate max.	l/min	240	430	500	750	750	1000
Engine power max.	kW	29	250	375	600	600	700
Piston diameter	mm	58-80	63-115	75-115	75-115	75-115	89-125
Suction diameter	mm	50	80	100	100	100	100
Outer diameter	mm	40	32	32	40	40	75
Weight	kg	950	11500	12500	16000	16000	30000
Notes						Automatic gearbox

We install diesel engines from Deutz, Mercedes or Scania.
Due to the fact that all parts are manufactured inhouse spare parts availability is guaranteed.

Other grouting equipment and mixing plants as well as Bentonite desanders are available on request.

We reserve the right to change technical specifications without prior notice.
