Delmag Foundation Rig RH 12/140

Specifications:
Total heightmm17980
Drilling distance max. (center)mm3650
Ground clearence-mast footmm1340
Inclination forward/backwarddeg5/14
Inclination left/rightdeg9.5/9.5
Crowd winch force up/downkN160/100
Crowd winch speed rapid/workingm/min40/15
Strokemm12000
Base carrier: ST 25 E
Engine power Scania DC9kW257
Track shoesmm700
Back pivoting radiusmm3250
Transport weight:
Transport weight with rotary head and Kelly bar K298/3-18kg44500

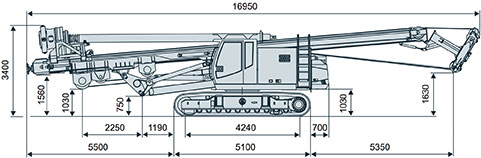

Transport dimensions:
Lengthmm16950
Widthmm3000
Heightmm3400

We reserve the right to change technical specifications without prior notice.
