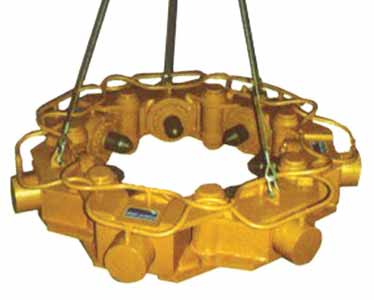

Hydraulic Pile Breakers

Our new series of hydraulic pile breakers for circular piles offer following advantages:

Up to ten times faster than conventional methods and up to 80 piles per day
Very compact dimensions
Low cut-off level
Easy to operate
No noise, no vibrations
No cracks below cut level
The reinforcement remains fully undamaged and intact
Leaves a perfect horizontal concrete fracture
Excellent service and spare parts availability
Quick diameter adjustment

Working procedure:

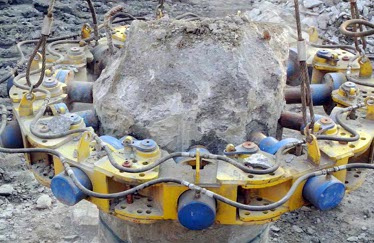

The excavator lifts the pile breaker over the pile and at first stage a complete horizontal fracture is made. The chisels penetrate in horizontal direction up to the re-bars for about 25 seconds to make the fracture. At second stage the chisels penetrate further (usually 25-40 mm) and due to the shape of the chisels and the reaction forces by the rebars, the concrete will break in pieces and can easily be lifted off the pile.

Model	Diameter	Oil Press.	Oil Flow	Exc. Weight	Elements	Bit	Weight
	mm	bar	l/min	ton	type	type	kg
FIP 700	700	300	200	20	8F	M 185	1800
FIP 800	800	300	200	20	8F	C 160	1800
FIP 900	900	300	225	22	9F	M 185	2050
FIP 1000	1000	300	225	22	9F	C 160	2050
FIP 1100	1100	300	250	25	10F	M 185	2275
FIP 1200	1200	300	250	25	10F	C 160	2275
FIP 1300	1300	300	275	28	11F	M 185	2500
FIP 1400	1400	300	275	28	11F	C 160	2500
FIP 1500	1500	300	300	28	12F	M 185	2725
FIP 1600	1600	300	320	30	13F	L 210	2950
FIP 1700	1700	300	320	30	13F	C 160	2950
FIP 1800	1800	300	320	36	14F	M 185	3200
FIP 1900	1900	300	320	36	14F	C 160	3200
FIP 2000	2000	300	350	36	15F	M 185	3425

We reserve the right to change technical specifications without prior notice.
