VIBRO STA 7500
| Power | 154 kW |
| Frequency | 30 Hz |
| Centrifugal force | 200 kN |
| Amplitude | 26 mm |
| Total weight (10 m) | 3800 kg |
| Required hydraulic flow | 200 l/min |
| Required pressure max. | 340 bar |
VIBRO STA 5000
| Power | 112 kW |
| Frequency | 50 Hz |
| Centrifugal force | 120 kN |
| Amplitude | 9.5 mm |
| Total weight (13 m) | 3800 kg |
| Required hydraulic flow | 180 l/min |
| Required pressure max. | 310 bar |

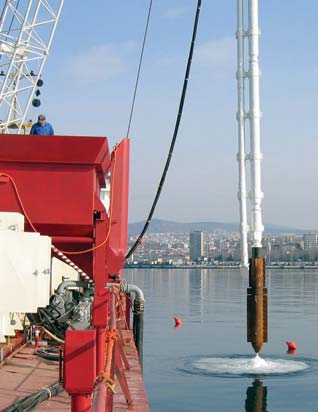

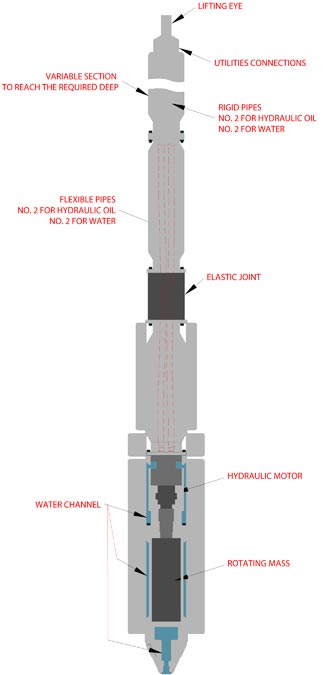

The VIBROS STA are powerful and versatile soil compaction equipment for even the most difficult vibroflotation and stone column applications. The wear shield is made of special steel and easy to replace. Extension pipes for different lengths are available.
|
Sofisticated control panel
|
