Hydraulic Casing Oscillators

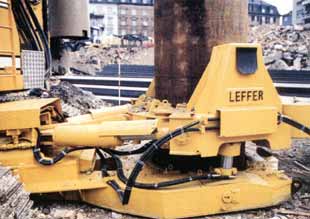

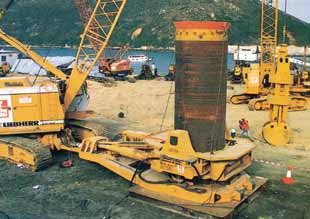

Hydraulic casing oscillators are used to drive and to extract large steel casings with diameters ranging from 800 to 2500 mm up to depths of 70 m. The required hydraulic power is supplied either by the excavating machine (hydraulic crawler crane or drilling rig) or by a separate power pack.
Casing Oscillators for cranes type VRM (long version)
| Model / Maximum Diameter | | 1300 | 1500 | 2000 | 2200 | 2500 | 2800 | 3000 |
|---|
| Overall width | mm | 2350 | 2850 | 3200 | 3400 | 4000 | 4300 | 4500 |
| Overall length | mm | 6500 | 6500 | 7500 | 7500 | 8800 | 9100 | 9140 |
| Overall height | mm | 1800 | 1850 | 1950 | 2050 | 2580 | 2580 | 2610 |
| Stroke | mm | 600 | 600 | 600 | 600 | 650 | 650 | 650 |
| Lifting force | kN | 1530 | 2050 | 2650 | 2650 | 5150 | 7250 | 7250 |
| Clamping force | kN | 1320 | 1660 | 2170 | 2170 | 3780 | 4780 | 4780 |
| Torque | kNm | 1660 | 2900 | 4110 | 4520 | 7070 | 8000 | 8350 |
| Operating pressure | bar | 270 | 270 | 270 | 270 | 300 | 300 | 300 |
| Weight | ton | 12 | 17 | 25 | 27 | 40 | 48 | 52 |
Casing Oscillators for foundation rigs type VRM KL (short version)
| Model / Maximum Diameter | | 120 | 150 | 200 | 250 |
|---|
| Overall width | mm | 2050 | 2500 | 3220 | 4000 |
| Overall length | mm | 3270 | 4070 | 5560 | 5980 |
| Overall height | mm | 1485 | 1600 | 1685 | 1855 |
| Stroke | mm | 400 | 450 | 450 | 450 |
| Lifting force | kN | 1000 | 1790 | 2300 | 2950 |
| Clamping force | kN | 1000 | 1560 | 1850 | 2570 |
| Torque | kNm | 1070 | 1950 | 2700 | 3000 |
| Operating pressure | bar | 270 | 270 | 300 | 300 |
| Weight | ton | 7 | 11 | 17 | 25 |
Accessories:
- Upper tube guides
- Insert for smaller diameters
- Lower locking devise
- Hydraulic power pack
- Hydraulic hose set
