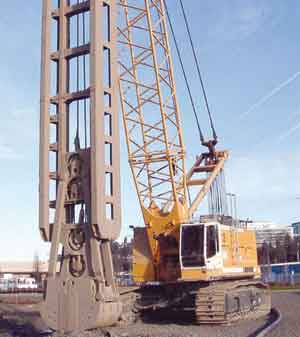

Diaphragm Wall Grabs (mechanical)

Mechanical grabs are the best solution to excavate diaphragm walls in all soil conditions up to a soil hardness of 70 mPA as light chisseling work is possible. The SWG series of diaphragm wall grabs is available with grab extensions for a total length of 10 or 12 m and also with extra ballast to reach a total weight of up to 22550 kg for even the most demanding projects.

Jaws may be rectangular or round shape. Jaws, ropes, pulleys and different teeth can be quickly replaced on site without any problems. All rope and guide pulleys have adequately dimensioned, maintenance-free bearings filled with grease.

We also supply hydraulic diaphragm wall grabs with inclination measuring and monitoring systems to guarantee a verticality of the diaphragm wall of 1 : 800. The recorded data of the complete excavation procedure can be stored and printed out for further use.

Type / Description	Width of Diaphragm Wall mm	Width of Basic Body mm	Jaw Capacity kg	No. of Pulleys	Weight with Extension kg
SWG 2.8-5	400	395	570	5	9800
SWG 2.8-5	500	395	710	5	11000
SWG 2.8-5	600	395	890	5	11600
SWG 2.8-5	500	495	710	5	9450
SWG 2.8-5	600	495	890	5	10200
SWG 2.8-5	800	495	1250	5	11700
SWG 2.8-6	600	580	890	6	12000
SWG 2.8-6	800	580	1250	6	13700
SWG 2.8-6	1000	580	1600	6	15000
SWG 3.2-6	800	780	1450	6	14000
SWG 3.2-6	1000	780	1850	6	16100
SWG 3.2-6	1200	780	2250	6	17200
SWG 3.2-6	1000	980	1850	6	16750
SWG 3.2-6	1200	980	2250	6	18900
SWG 3.2-6	1500	980	2800	6	21135
SWG 3.6-6	600	580	2100	6	16200
SWG 3.6-6	800	580	2800	6	18050
SWG 3.6-6	1000	580	3500	6	19300
SWG 4.2-6	600	580	2800	6	16620
SWG 4.2-6	800	580	3700	6	18600
SWG 4.2-6	1000	580	4600	6	20800
SWG 3.6-6	800	780	2800	6	19500
SWG 3.6-6	1000	780	3500	6	21840
SWG 3.6-6	1200	780	4200	6	22550

We reserve the right to change technical specifications without prior notice.
