Bentonite Desanders

SD Series of Bentonite Desanders

Main advantages:

High efficiency
Heavy duty construction
Easy assembly
Little maintenance
Great reliability
Regulation of flow by integrated derivative compensation
Patented control system

Main applications:

For small and medium foundation projects with bored piles or diaphragm walls
Reverse mud circulation
Milling applications
Microtunnelling

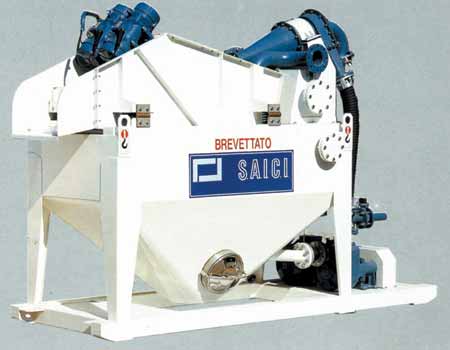

The SD series of Bentonite desanders have been specifically developed for foundation applications. The Bentonite mud is reliably seperated from all kinds of solids such as sand, clay, slims and other organic matters. The desander consists mainly of a setting tank, special centrifugal pumps, centrifugal seperators, vibration screens and a patented control system. All wear parts are made of top quality, highly resistant and long lasting materials for extended durability and easy maintenance.

Model		SD1000HP	SD1500HP	SD2000HP	SD2500HP	SD4000HP
Feeding capacity max.	m3/h	70	100	140	180	250
Cut point d50	mic	45	45	45	45	45
Power	kW	15	18	24	26	45
Container capacity	m3	1.2	1.2	1.5	1.5	2.5
Main screen	m2	1.0	1.0	1.2	1.2	1.8
Secondary screen	m2	0.8	0.8	1.0	1.0	1.5
Hydrocyclone		1x280	1x280	1x420	1x420	2x420
Length	mm	3400	3400	3800	4000	4500
Width	mm	1400	1400	1500	1600	2000
Height	mm	2400	2400	2500	2500	3000
Weight	kg	1800	1850	2200	2100	4500

Other Bentonite equipment i.e. turbo mixers, pumps, etc. are available on request.

We reserve the right to change technical specifications without prior notice.
