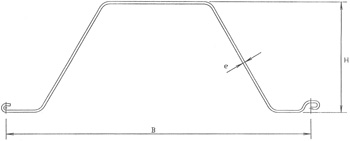

U-Type Sheet Piles

Type	Width	Height	Thickness	Weight	Weight	Section Modulus	Moment of Inertia
	mm	mm	mm	kg/m	kg/m2	cm3/m	cm4/m
WRU4	600	320	3.5	24.6	41.1	456	7298
WRU5	600	320	4.0	28.2	46.9	519	8307
WRU7	750	320	5	42.0	56.0	670	10725
WRU8	750	320	6	51.0	68.1	823	13169
WRU9-600	600	320	7	51.0	85.0	924	14783
WRU9-750	750	320	7	59.7	79.6	953	15251
WRU10	450	360	8	52.5	116.7	1015	18268
WRU11-575	575	360	8	60.4	105.1	1094	19685
WRU11-600	600	360	8	61.9	103.2	1105	19897
WRU11-450	450	360	9	58.8	130.7	1132	20375
WRU12-575	575	360	9	67.6	117.6	1221	21973
WRU12-600	600	360	9	69.5	115.8	1234	22213
WRU12-450	450	360	10	64.7	143.8	1247	22444
WRU13	575	360	10	74.5	129.5	1346	24224
WRU14	600	360	10	76.5	127.5	1361	24491
WRU15	650	480	7	62.3	95.8	1464	35144
WRU16-600	600	480	8	67.8	113.0	1645	39481
WRU16-650	650	480	8	71.3	109.6	1661	39864
WRU17	750	480	8	77.2	102.9	1687	40497
WRU19-600	600	480	9	76.0	126.7	1854	44674
WRU19-650	650	480	9	79.5	122.3	1855	44521
WRU21	650	540	8	78.1	120.2	2074	56002
WRU23-600	600	540	9	84.3	140.5	2315	62516
WRU23-650	650	540	9	87.2	134.2	2318	62586
WRU26-600	600	540	10	93.2	155.3	2555	68988
WRU26-650	650	540	10	96.2	148.0	2559	69093
WRU30-600	600	560	11	110.4	184.0	2999	83966
WRU30-700	700	560	11	117.5	167.8	2973	83247
WRU32-600	600	560	12	120.3	200.5	3231	90502
WRU32-700	700	560	12	129.8	185.4	3243	90815
WRU35	700	560	13	138.3	197.5	3494	105491
WRU37	700	560	14	151.4	216.3	3727	104361
WRU40	700	560	15	163.0	232.9	3972	111204
