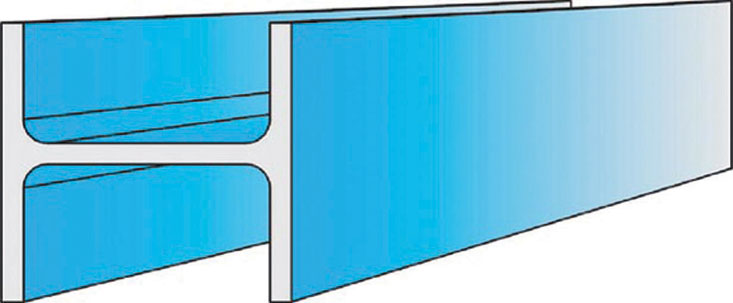

Wide Flange I-Beams

Section	Mass	Height	Width	Area	Moment of Inertia		Section Modulus
	kg/m	mm	mm	cm2	ly cm4	lz cm4	Wy cm3	Wz cm3
HE-A 100	16.7	96	100	21.2	349	134	72.8	26.8
HE-A 120	19.9	114	120	25.3	606	231	106	38.5
HE-A 140	24.7	133	140	31.4	1030	389	155	55.6
HE-A 160	30.4	152	160	38.8	1670	616	220	76.9
HE-A 180	35.5	171	180	45.3	2510	925	294	103
HE-A 200	42.3	190	200	53.8	3690	1340	389	134
HE-A 220	50.5	210	220	64.3	5410	1950	515	178
HE-A 240	60.3	230	240	76.8	7760	2770	675	231
HE-A 260	68.2	250	260	86.8	10450	3670	836	282
HE-A 280	76.4	270	280	97.3	13670	4760	1010	340
HE-A 300	88.3	290	300	113	18260	6310	1260	421
HE-A 320	97.6	310	300	124	22930	6990	1480	466
HE-A 340	105	330	300	133	27690	7440	1680	496
HE-A 360	112	350	300	143	33090	7890	1890	526
HE-A 400	125	390	300	159	45070	8560	2310	571
HE-A 450	140	440	300	178	63720	9470	2900	631
HE-A 500	155	490	300	198	86970	10370	3550	691
HE-A 550	166	540	300	212	111900	10820	4150	721
HE-A 600	178	590	300	226	141200	11270	4790	751
HE-A 650	190	640	300	242	175200	11720	5470	782
HE-A 700	204	690	300	260	215300	12180	6240	812
HE-A 800	224	790	300	286	303400	12640	7680	843
HE-A 900	252	890	300	321	422100	13550	9480	903
HE-A 1000	272	990	300	347	553800	14000	11190	934

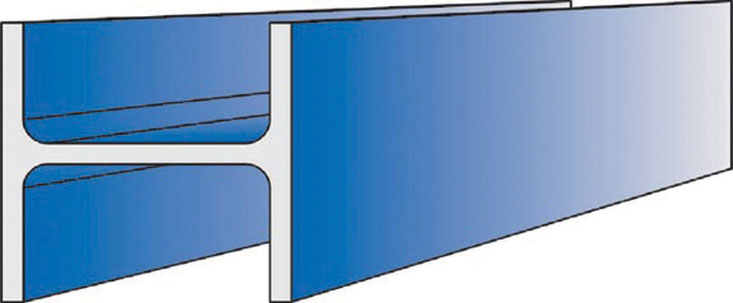

Section	Mass	Height	Width	Area	Moment of Inertia		Section Modulus
	kg/m	mm	mm	cm2	ly cm4	lz cm4	Wy cm3	Wz cm3
HE-B 100	20.4	100	100	26.0	450	167	89.9	33.5
HE-B 120	26.7	120	120	34.0	864	318	144	52.9
HE-B 140	33.7	140	140	43.0	1510	550	216	78.5
HE-B 160	42.6	160	160	54.3	2490	889	311	111
HE-B 180	51.2	180	180	65.3	3830	1360	426	151
HE-B 200	61.3	200	200	78.1	5700	2000	570	200
HE-B 220	71.5	220	220	91.0	8090	2840	736	258
HE-B 240	83.2	240	240	106	11260	3920	938	327
HE-B 260	93.0	260	260	118	14920	5130	1150	395
HE-B 280	103	280	280	131	19270	6590	1380	471
HE-B 300	117	300	300	149	25170	8560	1680	571
HE-B 320	127	320	300	161	30280	9240	1930	616
HE-B 340	134	340	300	171	36660	9690	2160	646
HE-B 360	142	360	300	181	43190	10140	2400	676
HE-B 400	155	400	300	198	57680	10820	2880	721
HE-B 450	171	450	300	218	79890	11720	3550	781
HE-B 500	187	500	300	239	107200	12620	4290	842
HE-B 550	199	550	300	254	136700	13080	4970	872
HE-B 600	212	600	300	270	171000	16530	5700	902
HE-B 650	225	650	300	286	210600	13980	6480	932
HE-B 700	241	700	300	306	256900	14440	7340	963
HE-B 800	262	800	300	334	359100	14900	8980	994
HE-B 900	291	900	300	371	494100	15820	10980	1050
HE-B 1000	314	1000	300	400	644700	16280	12890	1090

Wide flange I-beams according to DIN 1025 or EURONORM 53-62.

The sections can be delivered in all standard steel grades.
Please contact us for tolerances and other steel sections.

We reserve the right to change technical specifications without prior notice.
